Honda CL77 Scrambler CB77 Superhawk 305 Carburetor Carb Tuning Kit < QTY 2 >

Regular price $36.00

Honda CL77 Scrambler CB77 Superhawk 305 Carburetor Rebuild Tuning Kit < QTY 2 >

Listing is for TWO kits. One for each carb.

We worked with a Japanese supplier on these kits. These kits cover BOTH the CL77 and CB77. It has 3 main jets included. 130 which is stock for the CL. 135 which is stock for the CB and then a 140 if needed for tuning. The nice thing about this kit is the ability to use it to tune your carbs to modifications or current fuel. Need a richer jet on the CL? Use the 135. Need a richer jet on the CB? Use the 140. Want to try different needles, go for it. You get the idea. Please be aware YOU are ultimately responsible for the tuning of your carbs with these supplied parts.

All threads have been verified to be correct! Even the main jet holder.

Made in Japan.

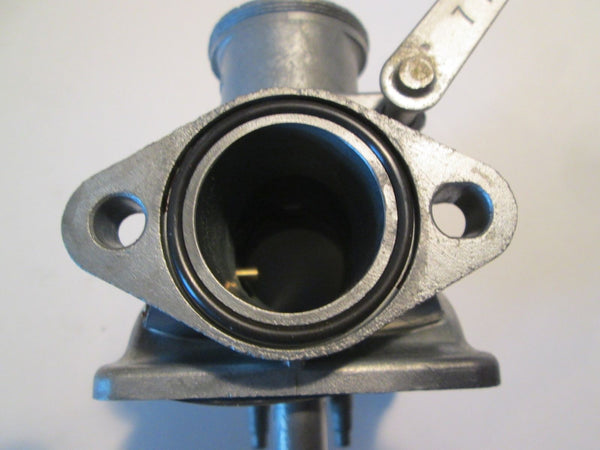

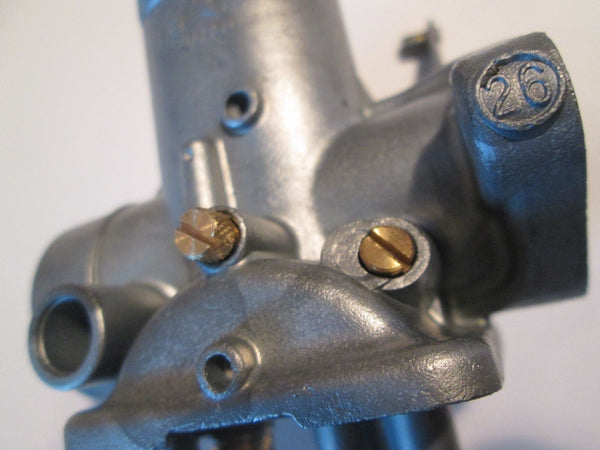

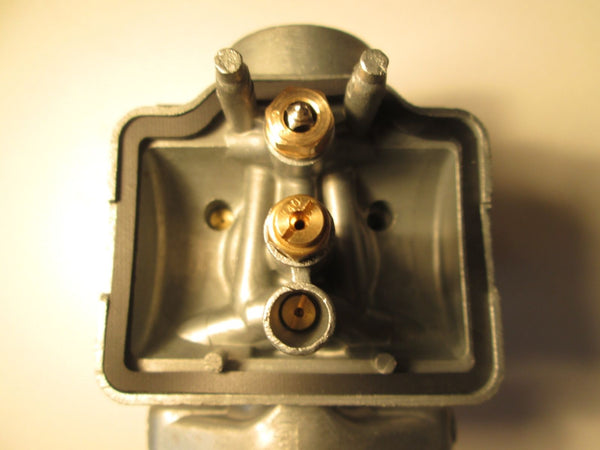

Pictures show some of the components installed in a carb. Carb pictured is NOT included.

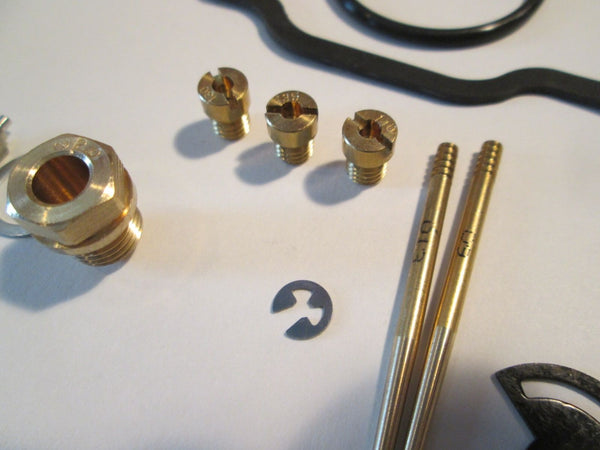

Each Kit includes.

FLOAT BOWL GASKET
FLOAT VALVE
#2.0 FLOAT SEAT
D9 JET NEEDLE (K24231 Equivalent) – CB77 Stock Size
D13 JET NEEDLE (K24304 Equivalent) – CL77 Stock Size
JET NEEDLE E-CLIP
SPRING SEAT RETAINER
PILOT AIR SCREW WITH SPRING
THROTTLE SCREW WITH SPRING
TOP COVER GASKET
MAIN JET #130 – Stock CL77 Size
MAIN JET #135 – Stock CB77 Size
MAIN JET #140 – Tuning Jet
SLOW JET #38 – Stock CL77 Size
SLOW JET #42 – Stock CB77 Size
CARB FLANGE O-RING
PILOT AIR SCREW O-RING
FLOAT SEAT WASHER
FUEL BANJO WASHER
FLOAT BOWL DRAIN WASHER
