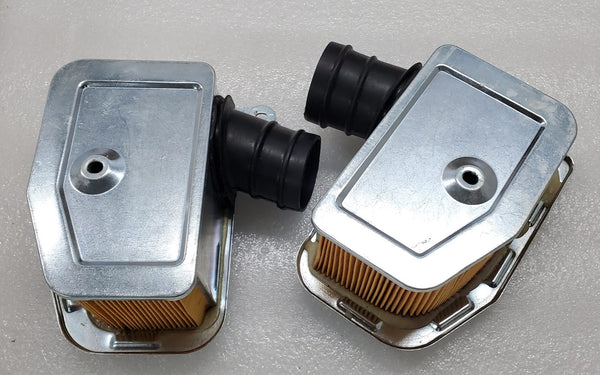

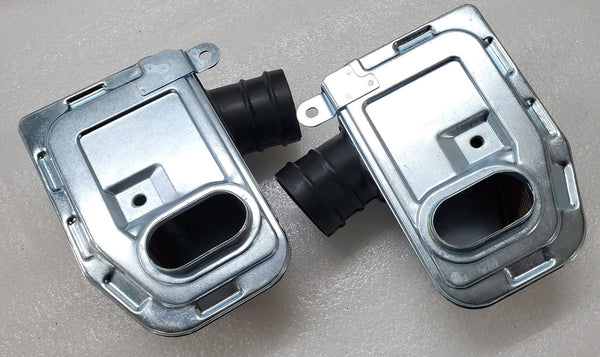

Honda 68-71 CB450 67-71 CL450 Air Filter Set Left and Right - Reproduction
The 1972 and later CB450 and CL450 used a different style of plastic filter housing. These filters fit the original housing on the models shown below.
Original filters for the 450's have become quite scarce. Scrambler Cycle had these filters manufactured to help out those that still want to run original style filters on your 450.
Part # = 17311-292-014
Part Description = ELEMENT, L. AIR CLEANER
Model Count = 8
CB450-K1 1968 450 Super Sport 450 Street
CB450-K2 1969 450 Super Sport 450 Street
CB450-K3 1970 450 Super Sport 450 Street
CB450-K4 1971 450 Super Sport 450 Street
CL450 1967 450 Scrambler 450 Dual Sport
CL450-K2 1969 450 Scrambler 450 Dual Sport
CL450-K3 1970 450 Scrambler 450 Dual Sport
CL450-K4 1971 450 Scrambler 450 Dual Sport
Part # = 17211-292-014
Part Description = ELEMENT, R. AIR CLEANER
Model Count = 8
CB450-K1 1968 450 Super Sport 450 Street
CB450-K2 1969 450 Super Sport 450 Street
CB450-K3 1970 450 Super Sport 450 Street
CB450-K4 1971 450 Super Sport 450 Street
CL450 1967 450 Scrambler 450 Dual Sport
CL450-K2 1969 450 Scrambler 450 Dual Sport
CL450-K3 1970 450 Scrambler 450 Dual Sport
CL450-K4 1971 450 Scrambler 450 Dual Sport
Installation -
Place carb clamp onto intake rubber. (carb clamp not included )
Install filter onto carb starting with rubber intake.
Slide filter into place and make sure rear crossover flange is seated in the filter crossover. (make sure the rubber gasket is still on the lip of the tube, this gasket is not included)
Install the bolt for the top forward mount but do not tighten.
Place plastic filter cover over the filter.
Insert the bolt through center of filter cover and filter. You may have to twist filter and housing slightly to align bolt with threaded hole.
Tighten bolt but be sure you are not cross-threaded!
Tighten bolt on upper forward mount.
Tighten clamps on rubber boots to carbs.
